High-Speed Gantry Type Cable Tray Roll Forming Machine 300 Model

High-speed gantry type cable tray roll forming machine 300 model produces 50-300mm wide and 50-100mm high cable trays at a rapid speed of 15-20m/min. Featuring a robust gantry through-shaft structure, it supports 0.3-1.5mm material thickness with 22 precision forming stages. This fully automatic line integrates leveling, punching, and cutting, ensuring maximum output and stability for modern electrical infrastructure projects.

The high-speed gantry type cable tray roll forming machine 300 model is a premium industrial solution designed for the mass production of steel cable trays. Unlike traditional cantilever designs, this gantry through-shaft structure provides superior rigidity, allowing for stable operation at speeds up to 20 meters per minute. It is perfectly suited for producing trays with widths from 50mm to 300mm and heights from 50mm to 100mm.

Core Advantages

High Efficiency: Optimized 15-20m/min production speed, nearly doubling the output of standard machines.
Gantry Stability: The through-shaft gantry frame minimizes vibration and ensures consistent profile accuracy (±1mm).
Versatile Sizing: Fully adjustable for various specifications within the 50-300mm range.
Reliable Components: Equipped with INVT inverters, Harbin bearings, and high-quality hydraulic systems.

Technical Specifications

1. Raw Material Parameters

Feature	Details
Material Type	Q235 Cold Rolled Steel / Galvanized Steel
Thickness Range	0.3 (±0.03) to 1.5 (±0.03) mm
Strip Width	150 — 550 mm

2. Machine Performance

Feature	Details
Production Speed	15 – 20 meters / minute (including punching)
Forming Stages	22 Stations
Shaft Diameter	50 mm
Total Power	Approx. 35 KW
Dimension (L×W×H)	35 × 1.8 × 2.2 meters

3. Finished Product Range

Feature	Details
Base Width	50 – 300 mm
Side Height	50 – 100 mm
Small Edge	7 – 12 mm
Tolerance	Length/Width ±1mm; Angle 90° ± 2°

Production Process

Hydraulic Decoiling: 6-ton capacity with electric expansion.
8-Roller Leveling: Ensuring flat input for precise punching.

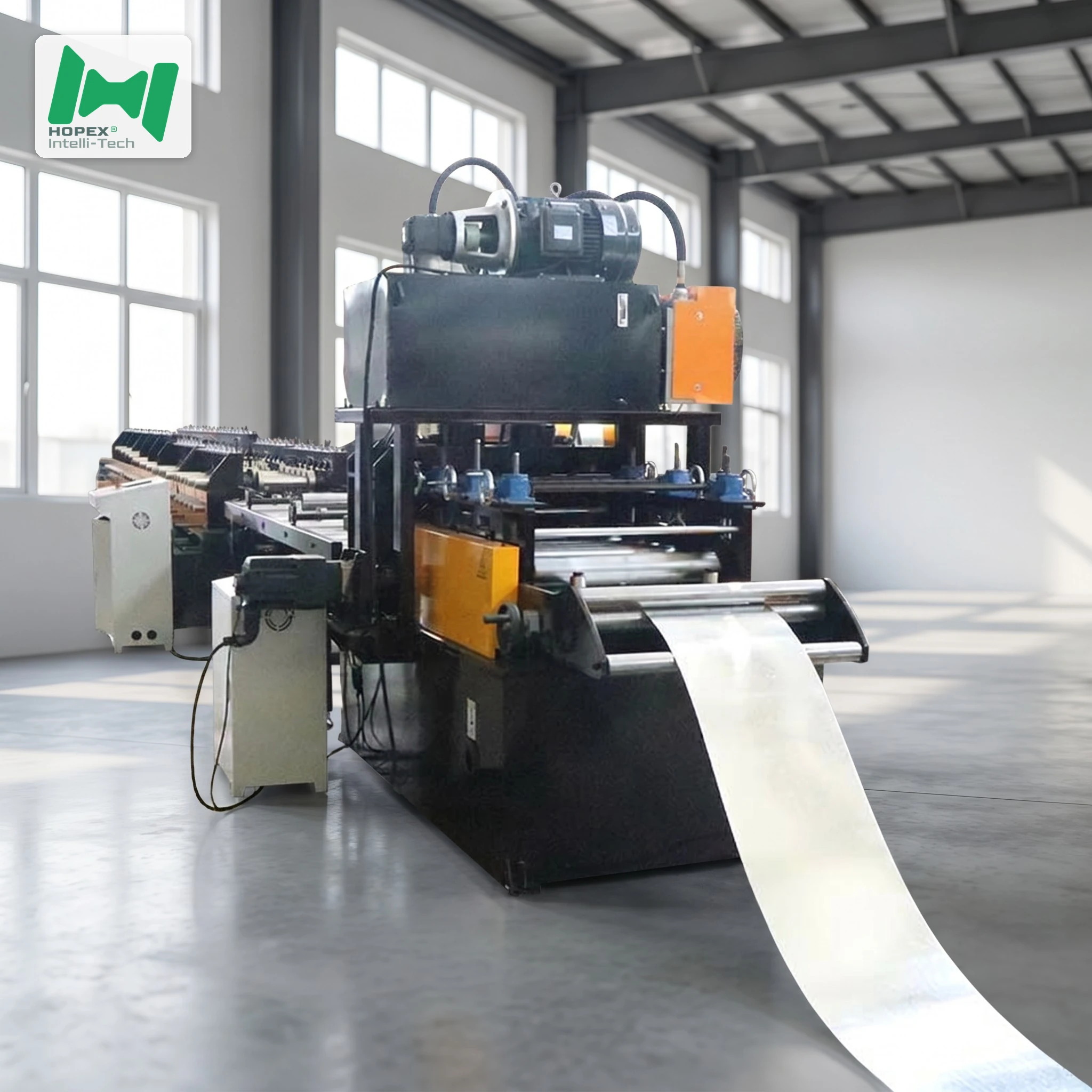

2-Station Punching: High-speed online hole creation for connections.
Hydraulic Cutting: Clean, burr-free shearing to specified lengths.

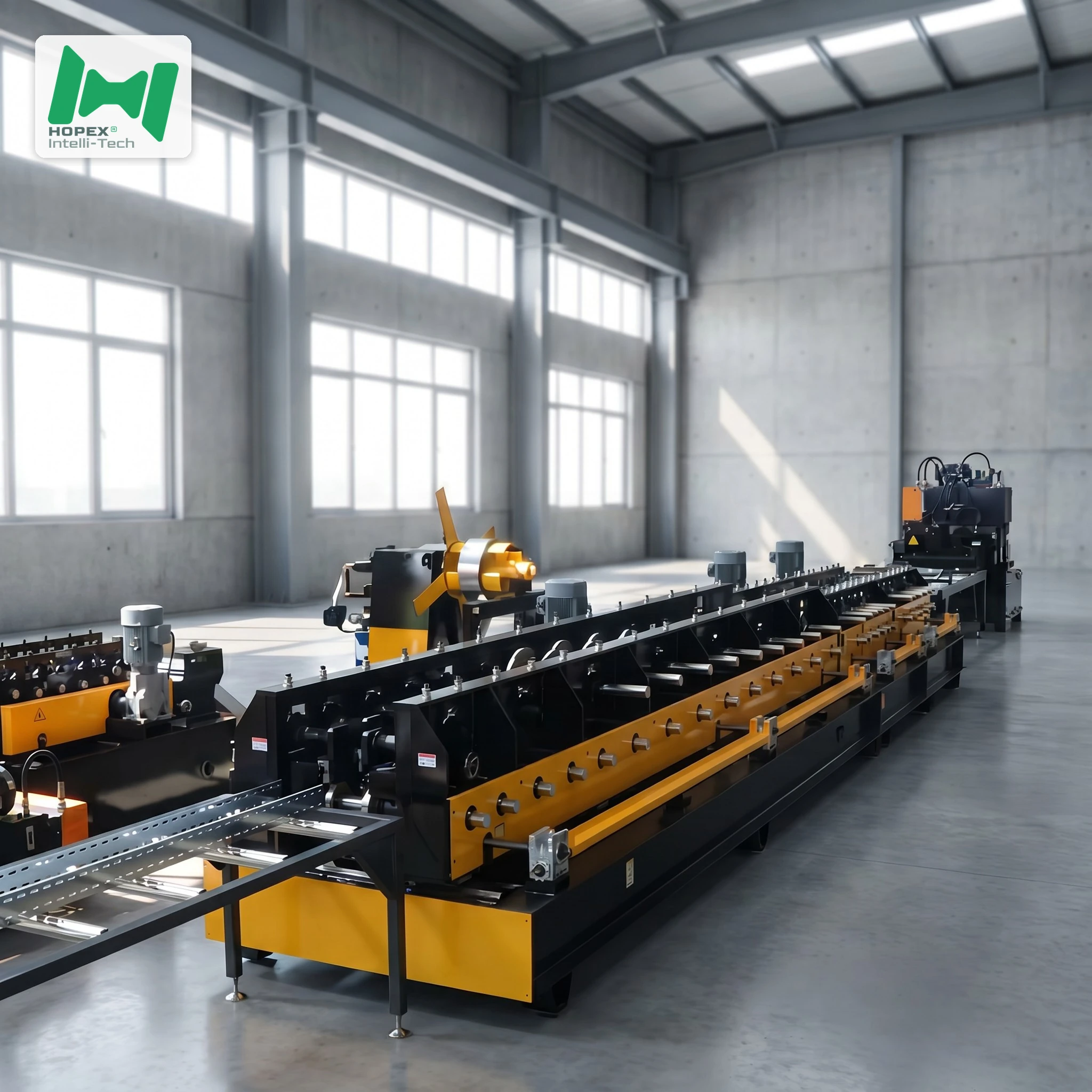

Gantry Roll Forming: 22 stations of precision shaping for the final profile.

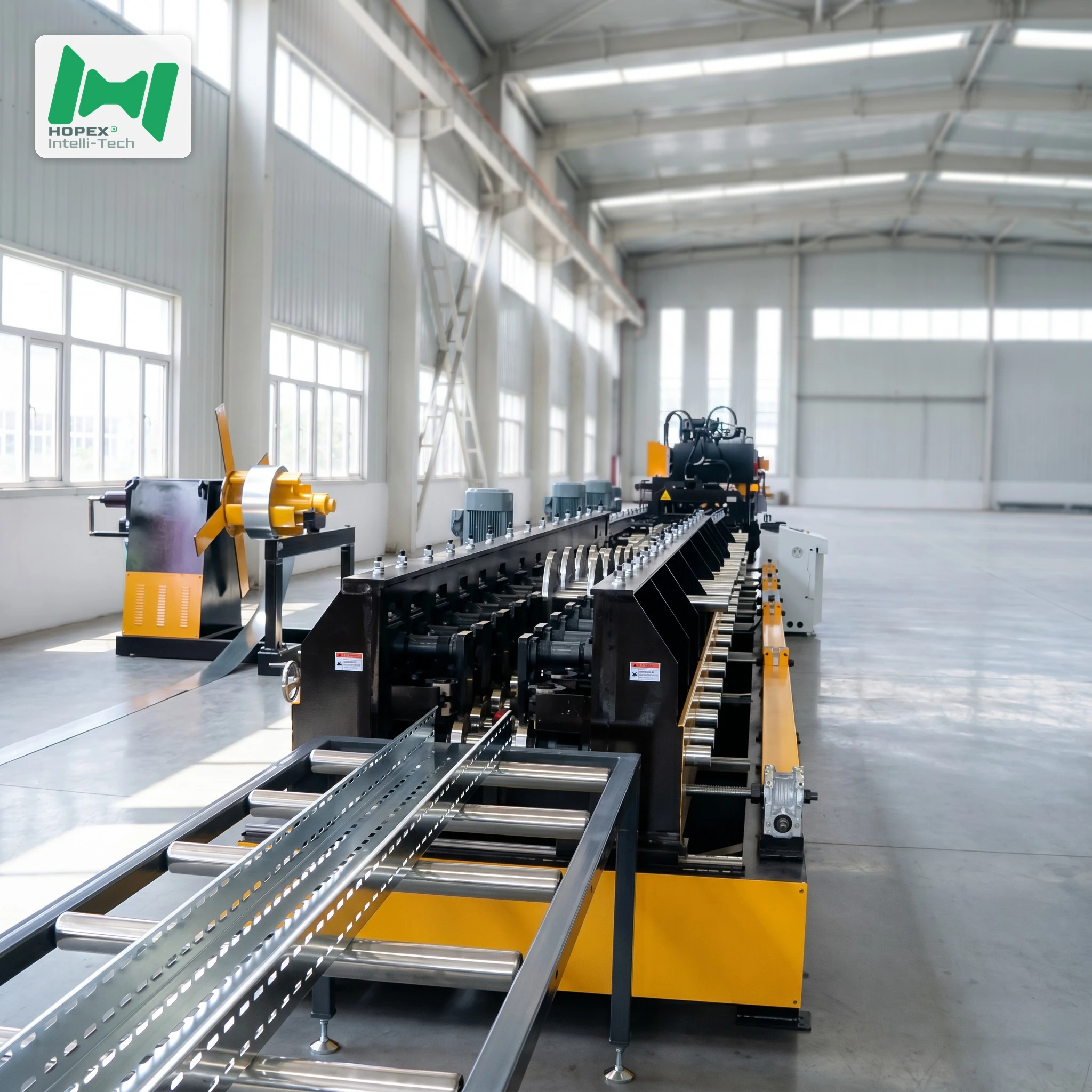

Output Table: 3-meter roller-type delivery platform.

Main Components & Brands

Inverter: INVT
Touch Screen: Xiankong
Control Unit: Delixi / Chint
Bearings: Harbin
Gearbox: Ruibofeng

FAQ

Q1: What is the main difference between this 300 model and other models?

This model uses a gantry through-shaft structure and is optimized for high-speed production (up to 20m/min), making it ideal for high-volume orders compared to standard arc-edge models.

Q2: What thickness of steel can it handle?

It can process steel from 0.3mm to 1.5mm. For thicker requirements (up to 2.0mm), please refer to our Heavy Duty 600 Series.

Q3: How long is the delivery time?

Standard configuration takes approximately 30-45 days. Custom voltage or specific punching dies may require additional time.

Contact for a Quote

Are you looking to upgrade your production capacity with a High-Speed Gantry Type Cable Tray Roll Forming Machine 300 Model? Contact our engineering team today for a detailed proposal and pricing.
